intermediateESP32-CAM

ESP32-CAM RC Car with Live Video

45 minintermediate

Prerequisites: Getting Started with RoboLink

Overview

This tutorial builds a 4-direction RC car using an AI-Thinker ESP32-CAM board. The phone drives the car over WiFi UDP while a live MJPEG video stream plays inside the RoboLink Camera widget — all running simultaneously on the same board.

Hardware Required

AI-Thinker ESP32-CAM board
L298N dual H-bridge motor driver
2 × DC gear motors (or 4 tied in pairs)
7–12 V battery pack for motors
5 V supply or regulator for ESP32-CAM
Jumper wires

Wiring

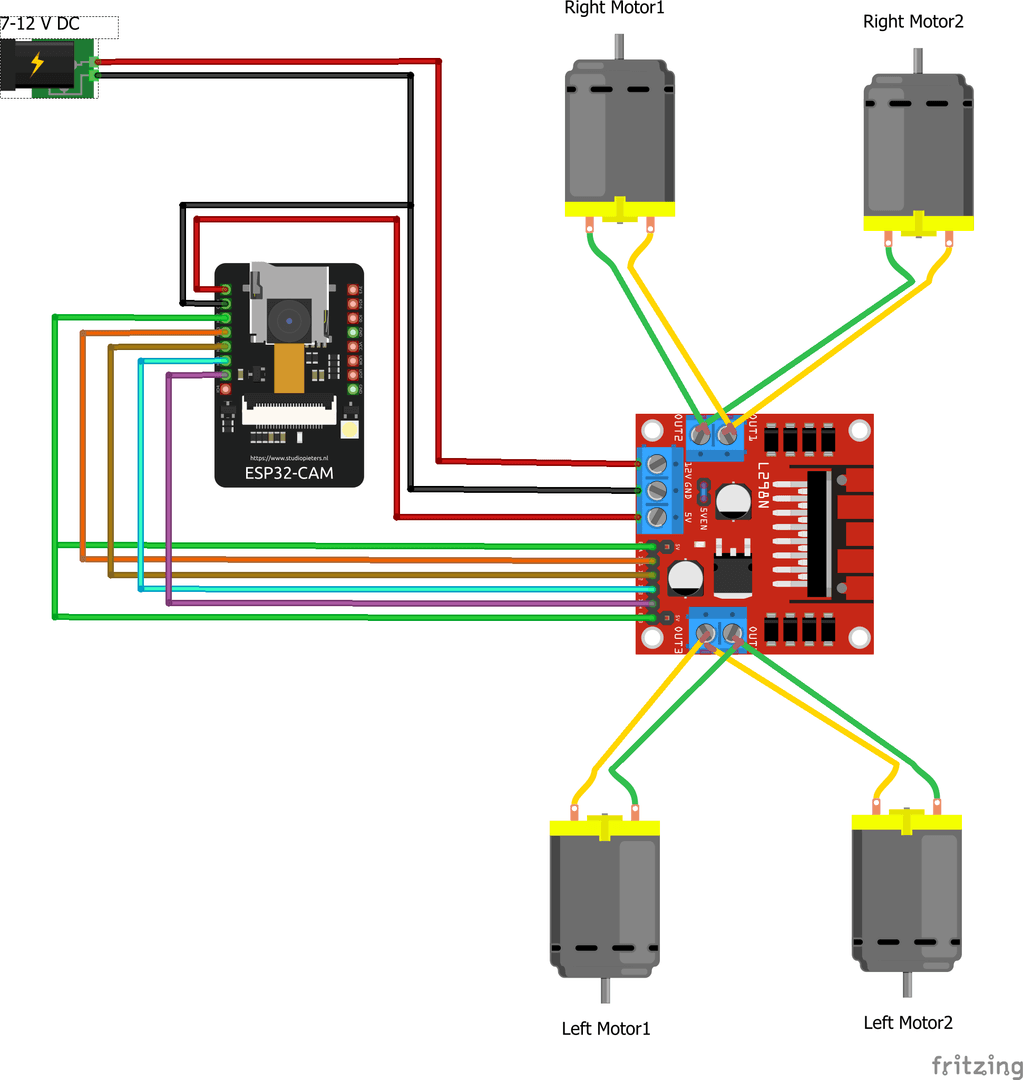

ESP32-CAM to L298N wiring diagram

ESP32-CAM Pin	L298N Pin	Notes
GPIO 12	ENA + ENB (tied)	Single PWM speed pin
GPIO 13	IN1	Right motors forward
GPIO 15	IN2	Right motors backward
GPIO 14	IN3	Left motors forward
GPIO 2	IN4	Left motors backward

Do not use GPIO 4 for motor control. On AI-Thinker ESP32-CAM boards GPIO 4 drives the onboard flash LED and is also used by the camera — reassigning it will corrupt the video stream.

Tie ENA and ENB together on the L298N and connect both to GPIO 12. This lets you control overall speed with a single PWM pin, freeing the remaining GPIOs for the camera.

App Setup

Configure the RoboLink app before uploading the sketch:

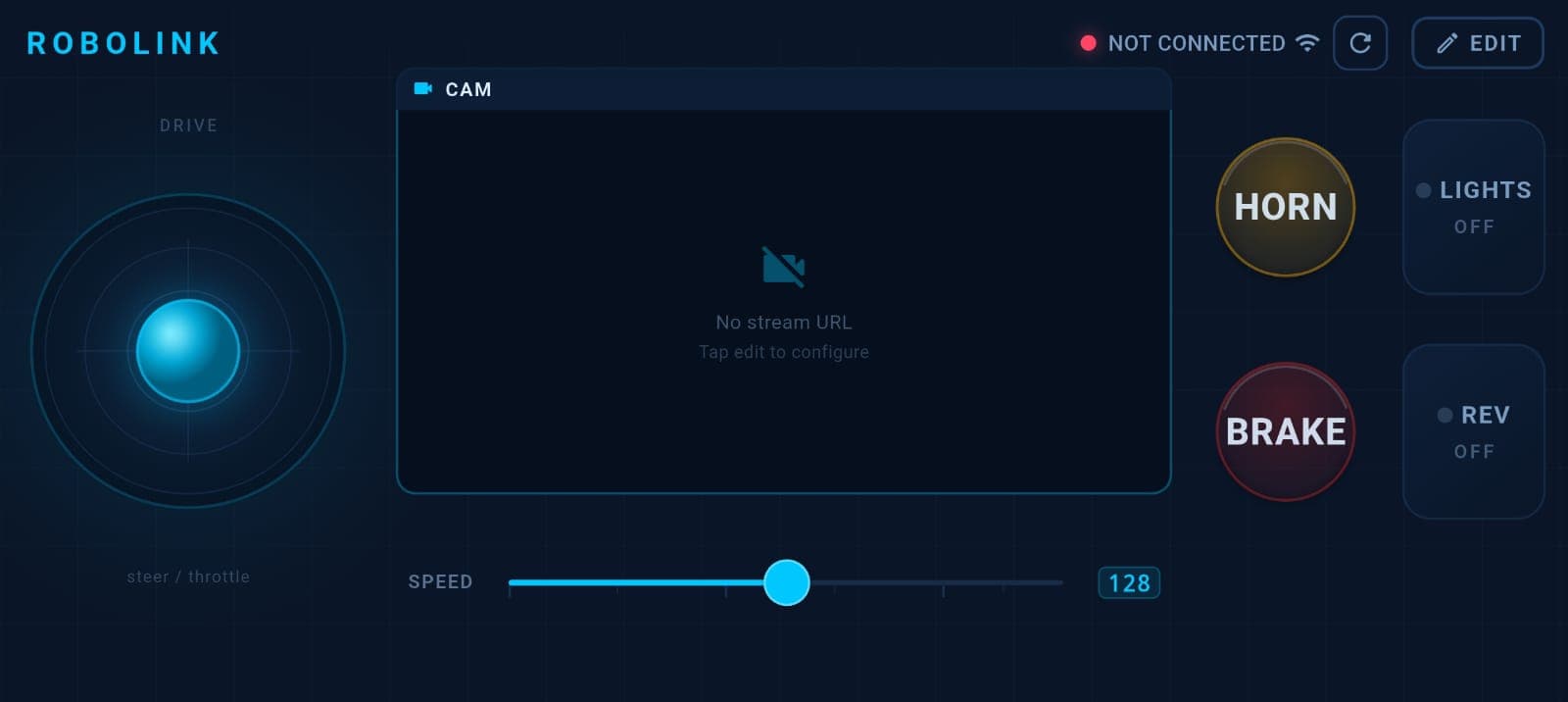

RoboLink app layout for ESP32-CAM RC car

Open RoboLink → tap Edit Layout.
Add a Joystick widget → set X key to steer, Y key to throttle.
Add a Camera widget → set the URL to http://192.168.4.1:81/stream.
Optionally add a Gauge widget → set key to uptime to watch the ESP32 uptime.
Save the layout.

192.168.4.1 is always the ESP32's IP when it runs as an Access Point. Port 81 is where the MJPEG stream server listens as configured in the sketch.

The Sketch

Upload this to your ESP32-CAM using the AI Thinker ESP32-CAM board definition in Arduino IDE.

C++

#include <RoboLink.h>
#include "esp_camera.h"
#include <WiFi.h>

const char* WIFI_SSID     = "RoboLink_CAM";
const char* WIFI_PASSWORD = "12345678";

// Motor pins (L298N)
const int SPEED_PIN = 12;   // ENA + ENB tied together
const int IN1 = 13;         // Right motors forward
const int IN2 = 15;         // Right motors backward
const int IN3 = 14;         // Left motors forward
const int IN4 =  2;         // Left motors backward

// Camera pin map — AI-Thinker ESP32-CAM
#define PWDN_GPIO_NUM  32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM   0
#define SIOD_GPIO_NUM  26
#define SIOC_GPIO_NUM  27
#define Y9_GPIO_NUM    35
#define Y8_GPIO_NUM    34
#define Y7_GPIO_NUM    39
#define Y6_GPIO_NUM    36
#define Y5_GPIO_NUM    21
#define Y4_GPIO_NUM    19
#define Y3_GPIO_NUM    18
#define Y2_GPIO_NUM     5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM  23
#define PCLK_GPIO_NUM  22

#define STREAM_PORT 81

RoboLinkWiFi robolink;

// ── Motor helpers ──────────────────────────────────────────────────────
void motorForward(int spd)  { analogWrite(SPEED_PIN, spd); digitalWrite(IN1,HIGH); digitalWrite(IN2,LOW);  digitalWrite(IN3,HIGH); digitalWrite(IN4,LOW);  }
void motorBackward(int spd) { analogWrite(SPEED_PIN, spd); digitalWrite(IN1,LOW);  digitalWrite(IN2,HIGH); digitalWrite(IN3,LOW);  digitalWrite(IN4,HIGH); }
void motorLeft(int spd)     { analogWrite(SPEED_PIN, spd); digitalWrite(IN1,HIGH); digitalWrite(IN2,LOW);  digitalWrite(IN3,LOW);  digitalWrite(IN4,HIGH); }
void motorRight(int spd)    { analogWrite(SPEED_PIN, spd); digitalWrite(IN1,LOW);  digitalWrite(IN2,HIGH); digitalWrite(IN3,HIGH); digitalWrite(IN4,LOW);  }
void motorStop()            { analogWrite(SPEED_PIN, 0);   digitalWrite(IN1,LOW);  digitalWrite(IN2,LOW);  digitalWrite(IN3,LOW);  digitalWrite(IN4,LOW);  }

// ── MJPEG stream task (runs on Core 0) ────────────────────────────────
static const char* BOUNDARY = "\r\n--frame\r\n";
static const char* PART_HDR = "Content-Type: image/jpeg\r\nContent-Length: %u\r\n\r\n";

void streamTask(void*) {
    WiFiServer server(STREAM_PORT);
    server.begin();
    for (;;) {
        WiFiClient client = server.available();
        if (!client) { vTaskDelay(10); continue; }
        unsigned long t = millis();
        while (client.connected() && !client.available() && millis()-t < 3000) vTaskDelay(1);
        while (client.available()) client.read();
        client.println("HTTP/1.1 200 OK");
        client.println("Content-Type: multipart/x-mixed-replace; boundary=frame");
        client.println("Access-Control-Allow-Origin: *");
        client.println();
        while (client.connected()) {
            camera_fb_t* fb= esp_camera_fb_get();
            if (!fb) { vTaskDelay(100); continue; }
            char hdr[64]; snprintf(hdr, sizeof(hdr), PART_HDR, fb->len);
            client.print(BOUNDARY); client.print(hdr); client.write(fb->buf, fb->len);
            esp_camera_fb_return(fb);
            vTaskDelay(1);
        }
    }
}

// ── Camera init ────────────────────────────────────────────────────────
bool initCamera() {
    camera_config_t cfg = {};
    cfg.ledc_channel = LEDC_CHANNEL_0; cfg.ledc_timer = LEDC_TIMER_0;
    cfg.pin_d0=Y2_GPIO_NUM; cfg.pin_d1=Y3_GPIO_NUM; cfg.pin_d2=Y4_GPIO_NUM;
    cfg.pin_d3=Y5_GPIO_NUM; cfg.pin_d4=Y6_GPIO_NUM; cfg.pin_d5=Y7_GPIO_NUM;
    cfg.pin_d6=Y8_GPIO_NUM; cfg.pin_d7=Y9_GPIO_NUM;
    cfg.pin_xclk=XCLK_GPIO_NUM; cfg.pin_pclk=PCLK_GPIO_NUM;
    cfg.pin_vsync=VSYNC_GPIO_NUM; cfg.pin_href=HREF_GPIO_NUM;
    cfg.pin_sccb_sda=SIOD_GPIO_NUM; cfg.pin_sccb_scl=SIOC_GPIO_NUM;
    cfg.pin_pwdn=PWDN_GPIO_NUM; cfg.pin_reset=RESET_GPIO_NUM;
    cfg.xclk_freq_hz=20000000; cfg.pixel_format=PIXFORMAT_JPEG;
    cfg.grab_mode=CAMERA_GRAB_LATEST;
    if (psramFound()) { cfg.frame_size=FRAMESIZE_VGA;  cfg.jpeg_quality=12; cfg.fb_count=2; }
    else              { cfg.frame_size=FRAMESIZE_QVGA; cfg.jpeg_quality=15; cfg.fb_count=1; }
    return esp_camera_init(&cfg) == ESP_OK;
}

void setup() {
    Serial.begin(115200);
    pinMode(SPEED_PIN,OUTPUT);
    pinMode(IN1,OUTPUT); pinMode(IN2,OUTPUT);
    pinMode(IN3,OUTPUT); pinMode(IN4,OUTPUT);
    motorStop();

    if (!initCamera()) Serial.println("Camera init failed — no video.");

    robolink.beginAP(WIFI_SSID, WIFI_PASSWORD);
    Serial.print("Stream: http://"); Serial.print(robolink.localIP()); Serial.println(":81/stream");

    xTaskCreatePinnedToCore(streamTask, "mjpeg", 4096, NULL, 1, NULL, 0);

    robolink.setTimeoutMs(500);
    robolink.setSendInterval(200);
}

void loop() {
    robolink.update();

    int throt = robolink.get("throttle");  // -100 to +100
    int steer = robolink.get("steer");     // -100 to +100

    if (robolink.isTimedOut() || !robolink.hasReceivedData()) { motorStop(); return; }

    // Whichever axis is pushed harder wins
    if (abs(throt) >= abs(steer)) {
        if      (throt >  10) motorForward (map(throt,  0, 100, 0, 255));
        else if (throt < -10) motorBackward(map(-throt, 0, 100, 0, 255));
        else motorStop();
    } else {
        if      (steer >  10) motorRight(map(steer,  0, 100, 0, 255));
        else if (steer < -10) motorLeft (map(-steer, 0, 100, 0, 255));
        else motorStop();
    }

    robolink.setSensor("uptime", (int)(millis() / 1000));
}

How It Works

Dual-core streaming

The MJPEG server runs on Core 0 via xTaskCreatePinnedToCore. The motor control and UDP receive loop runs on Core 1 (the default Arduino loop()). The two never block each other, so video stays smooth even when the joystick is moving fast.

Motor direction logic

The joystick sends throttle (forward/backward) and steer (left/right) continuously. The sketch compares their absolute values and executes whichever is pushed harder — a simple 4-direction model that works well for basic navigation.

Safety stop

setTimeoutMs(500) guarantees the motors stop if the phone disconnects or the WiFi drops for more than 500 ms. Always include this in any motor-driving project.

Troubleshooting

Symptom	Fix
Camera init failed in Serial Monitor	Check that you selected AI Thinker ESP32-CAM as the board in Arduino IDE
Video stream doesn't appear in app	Confirm Camera widget URL is exactly `http://192.168.4.1:81/stream`
Motors don't move but stream works	Verify L298N wiring matches the GPIO table above; check 12 V motor supply
GPIO 4 causes garbled video	Do not connect anything to GPIO 4 — it is shared with the camera flash LED
Choppy or frozen video	Switch to QVGA (320×240) by removing the `psramFound()` block and hardcoding `FRAMESIZE_QVGA`

Next Steps

Add a speed slider widget (key speed, range 0–255) and replace the hardcoded map() with robolink.get("speed") for variable top speed.
Add a Toggle widget (key lights) and wire GPIO 4 to an external LED (not the onboard flash) if your board variant exposes it safely.
Explore the Sensor data tutorial to display battery voltage alongside the uptime gauge.
